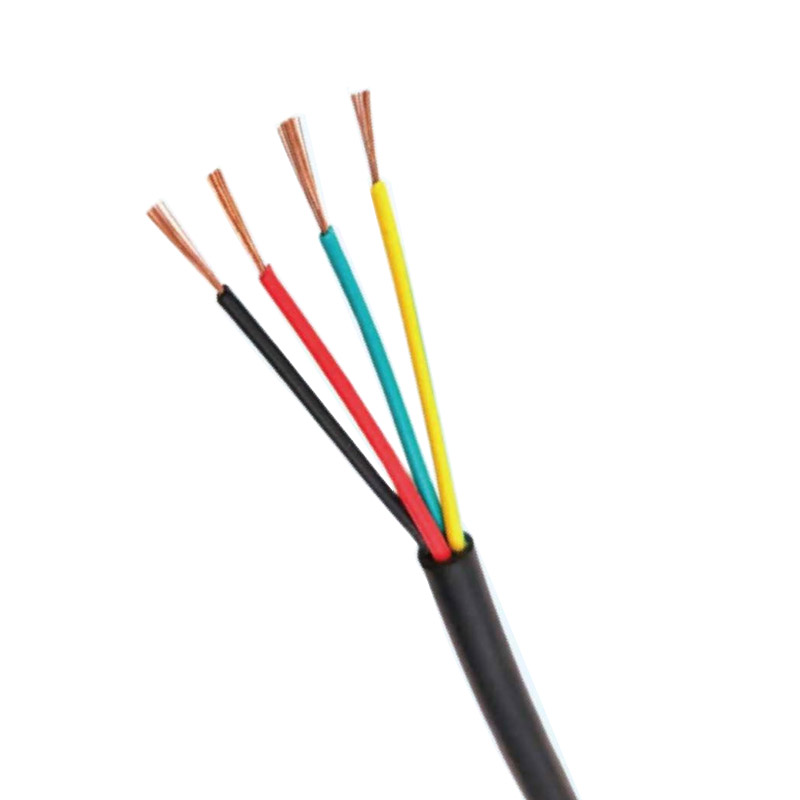

AVVR 额定电压300/300V安装连接电缆

应用：适用于仪表电器、电子设备等环境，固定安装或焊接在电路板或直接柔性安装控制器，在电气设备、仪表装置、消防系统控制装置中作直流电源传输和信号传输等布设线路用；也可用于低功率LED 照明装置电源使用。

执行标准：JB/T8734.4

产品通过：“3C”认证

产品符合：ROHS 2.0要求

导体：符合JB/T8734.4要求。

绝缘：聚氯乙烯(PVC/C)材料；

护套：氯乙烯(PVC/ST4)材料。

美河电缆客服

咨询热线： 135 6888 5225

在线咨询

关键特性

额定电压

UO/U 300/300V
测试电压

2000V/5min
最小弯曲半径

最小弯曲半径固定敷设电缆允许弯曲半径不小于4D; 柔性安装电缆允许弯曲半径不小于6D(D 为电缆直径)。
使用温度

电缆长期允许最低工作温度不低于-15℃ 最高工作温度不超过70℃ 安装时温度应高于0℃

基本参数表

型号	规格		外形尺寸mm				参考外径 mm		参考重量 Kg/Km
			下限		上限
AVVR	2×0.12		3.3		4.3		3.8		14.8
AVVR	2×0.12		2.4×3.6		2.8×4.3		2.4×3.7		12.2
AVVR	2x0.2		3.6		4.7		4.1		18.0
AVVR	2×0.2		2.5×3.9		3.0×4.7		2.6×4.0		15.0
AVVR	2×0.3		4.1		5.3		4.7		22.8
AVVR	2×0.3		2.8×4.4		3.4×5.3		2.9×4.6		19.2
AVVR	2×0.4		4.4		5.7		5.0		26.7
AVVR	2×0.4		2.9×4.7		3.5×5.7		3.0×4.9		22.6
AVVR	3×0.12		3.4		4.5		4.0		17.5
AVVR	3×0.2		3.8		4.9		4.3		21.7
AVVR	3×0.3		4.4		5.7		5.0		28.0
AVVR	3×0.4		4.7		6.0		5.3		33.1
AVVR	4×0.12		3.8		4.9		4.3		21.2
AVVR	4×0.2		4.2		5.4		4.7		26.4
AVVR	4×0.3		4.8		6.2		5.4		34.5
AVVR	4×0.4		5.1		6.6		5.8		41.1
AVVR	5×0.12		4.1		5.3		4.7		25.3
AVVR	5×0.2		4.5		5.8		5.1		32.0
AVVR	5×0.3		5.3		6.7		5.9		42.1
AVVR	5×0.4		5.6		7.2		6.3		50.4
AVVR	6×0.12		4.4		5.7		5.0		29.4
AVVR	6×0.2		4.9		6.3		5.5		37.4
AVVR	6×0.3		5.7		7.3		6.4		49.7
AVVR	6×0.4		6.2		7.8		6.8		59.6
AVVR	7×0.12		4.4		5.7		5.0		31.0
AVVR	7×0.2		4.9		6.3		5.5		39.8
AVVR	7x0.3		5.7		7.3		6.4		53.0
AVVR	7×0.4		6.2		7.8		6.8		63.9
AVVR	8×0.12		5.0		6.4		5.4		34.9
AVVR	8×0.2		5.6		7.1		5.9		45.0
AVVR	8×0.3		6.4		8.2		6.9		59.9
AVVR	8×0.4		7.0		8.8		7.4		72.5
AVVR	9×0.12		5.4		6.9		5.7		38.5
AVVR	9×0.2		6.0		7.7		6.2		49.8
AVVR	9×0.3		7.4		9.3		7.6		73.2
AVVR	9×0.4		8.0		10.0		8.1		87.8
AVVR	10×0.12		5.7		7.2		6.3		44.1
AVVR	10×0.2		6.3		8.0		6.9		56.9
AVVR	10×0.3		7.8		9.7		8.5		83.8
AVVR	10×0.4		8.3		10.4		9.0		100.3
AVVR		12×0.12		5.8		7.4		6.5		48.3
AVVR	12x0.2		6.5		8.2		7.1		63.0
AVVR	12×0.3		8.0		10.1		8.7		92.1
AVVR	12×0.4		8.6		10.8		9.3		111.1
AVVR	14×0.12		6.1		7.8		6.8		54.4
AVVR	14×0.2		7.2		9.1		7.9		78.2
AVVR	14×0.3		8.4		10.6		9.2		104.1
AVVR	14×0.4		9.1		11.3		9.8		126.0
AVVR	16×0.12		6.5		8.2		7.2		61.3
AVVR	16x0.2		7.6		9.6		8.3		878
AVVR	16×0.3		8.9		111		9.7		117.3
AVVR	16×0.4		9.6		11.9		10.3		142.4
AVVR	18×0.12		7.2		9.1		7.9		74.9
AVVR	18×0.2		8.1		10.1		8.7		97.3
AVVR	18×0.3		9.3		11.7		10.2		130.5
AVVR	18×0.4		10.1		126		10.9		158.7
AVVR	19×0.12		7.2		9.1		7.9		76.6
AVVR	19×0.2		8.1		10.1		8.7		99.7
AVVR	19x0.3		9.4		11.7		10.2		133.8
AVVR	19×0.4		10.1		126		10.9		163.0
AVVR	20×0.12		7.6		9.6		8.1		80.1
AVVR	20×0.2		8.5		10.6		8.9		104.6
AVVR	20×0.3		9.9		12.3		10.4		140.4
AVVR	20×0.4		10.7		13.3		11.2		171.1
AVVR	24×0.12		8.4		10.6		9.2		95.8
AVVR	24×0.2		9.4		11.7		10.1		125.3
AVVR	24×0.3		11.4		14.2		12.3		179.9
AVVR	24×0.4		12.3		15.2		12.7		206.3
AVVR	26×0.12		8.4		10.6		9.4		100.2
AVVR	26×0.2		9.4		11.7		10.3		131.6
AVVR	26x0.3		11.4		14.2		12.5		188.6
AVVR	26×0.4		12.3		15.2		13.4		228.8
AVVR	28×0.12		8.9		11.2		9.4		105.5
AVVR	28×0.2		10.4		12.9		10.7		148.3
AVVR	28×0.3		12.0		14.9		12.5		198.9
AVVR	28×0.4		13.0		16.1		13.4		241.9
AVVR	30×0.12		8.9		11.2		9.7		111.9
AVVR	30×0.2		10.4		12.9		11.1		157.5
AVVR	30×0.3		12.0		14.9		13.0		211.4
AVVR	30×0.4		13.0		16.1		13.9		257.4
